Wall Grilles for Airconditioing, Air / Flute Extraction

The Brodie Grille
Model OL1 & Model OL1R

The Brodie Grille is designed with air conditioning in mind, but is ideal for air / flute extraction conduit.

The grille is widely used for exhaust / return with emphasis on minimum air resistance and low turbulence.

Features

Ideal for incremental apertures. Sturdily built to hold its shape. Also available with angle frames for blockwork and recesses.

Material

Extruded aluminium 6063T5 alloy

Detail Drawings and Installation Drawings

.pdf	Adobe Acrobat files for viewing. Download Acrobat Reader
	Brodie Grille OL 1 & OL 1R

Cad files for downloading

	Right mouse click on each link below and choose: "Save target as" from the menu that appears (IE Explorer 5 & 6) or "Save link" or "Save link target" from the menu that appears. (Netscape).

.dwg	AutoCAD files
	Download Brodie Grille OL 1 & OL 1R

.mod	Archicad Module
	Download Brodie Grille OL 1 & OL 1R

.pmk	Archicad Plotmaker
	Download Brodie Grille OL 1 & OL 1R

Detail Drawing - please wait while drawing downloads, thank you

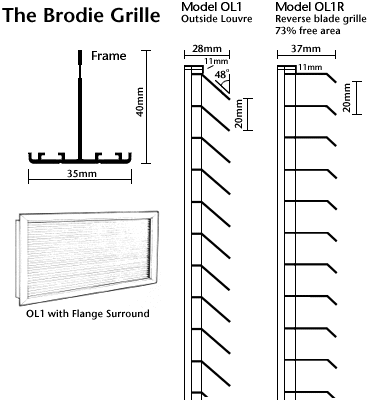

The Brodie Grille Detail Drawings
